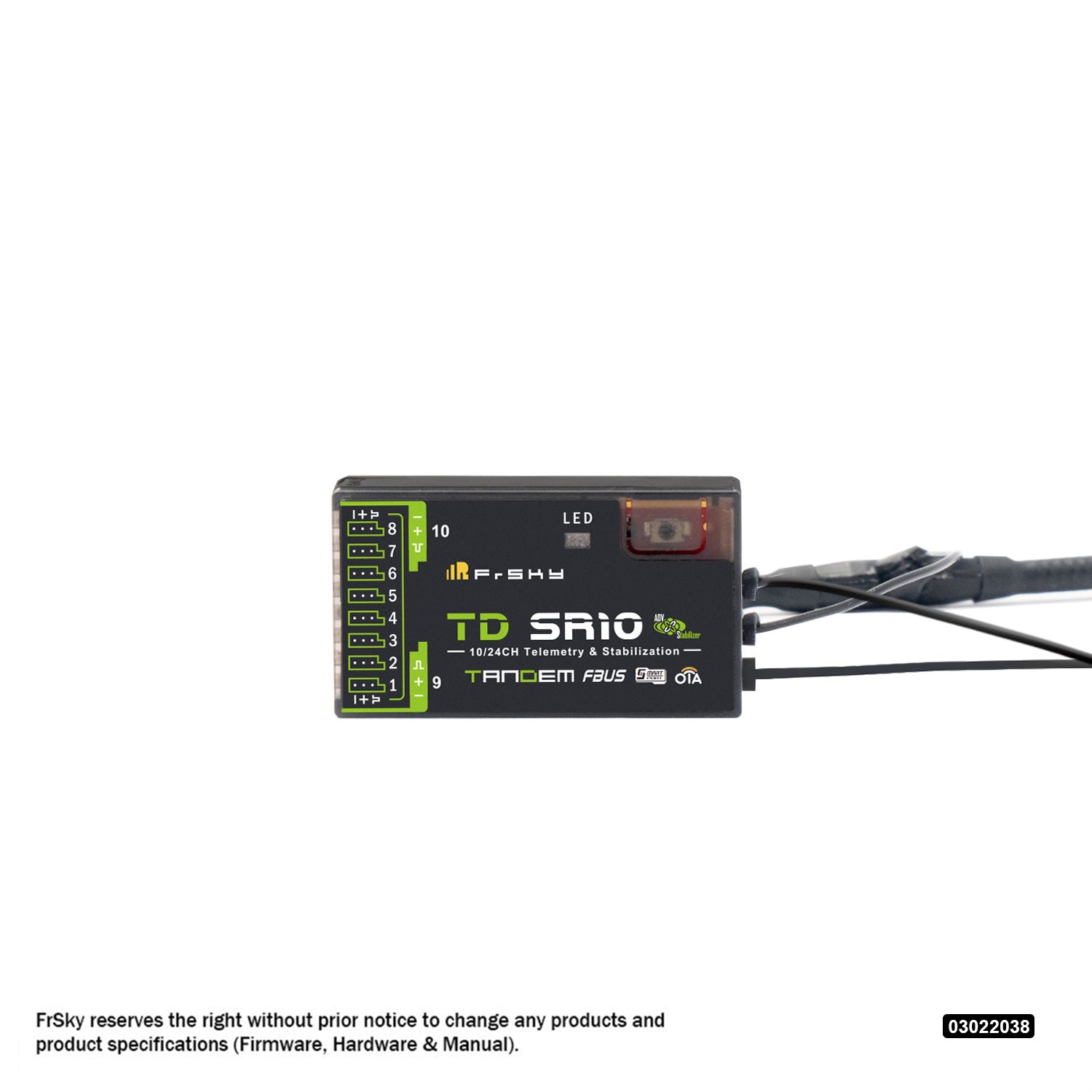

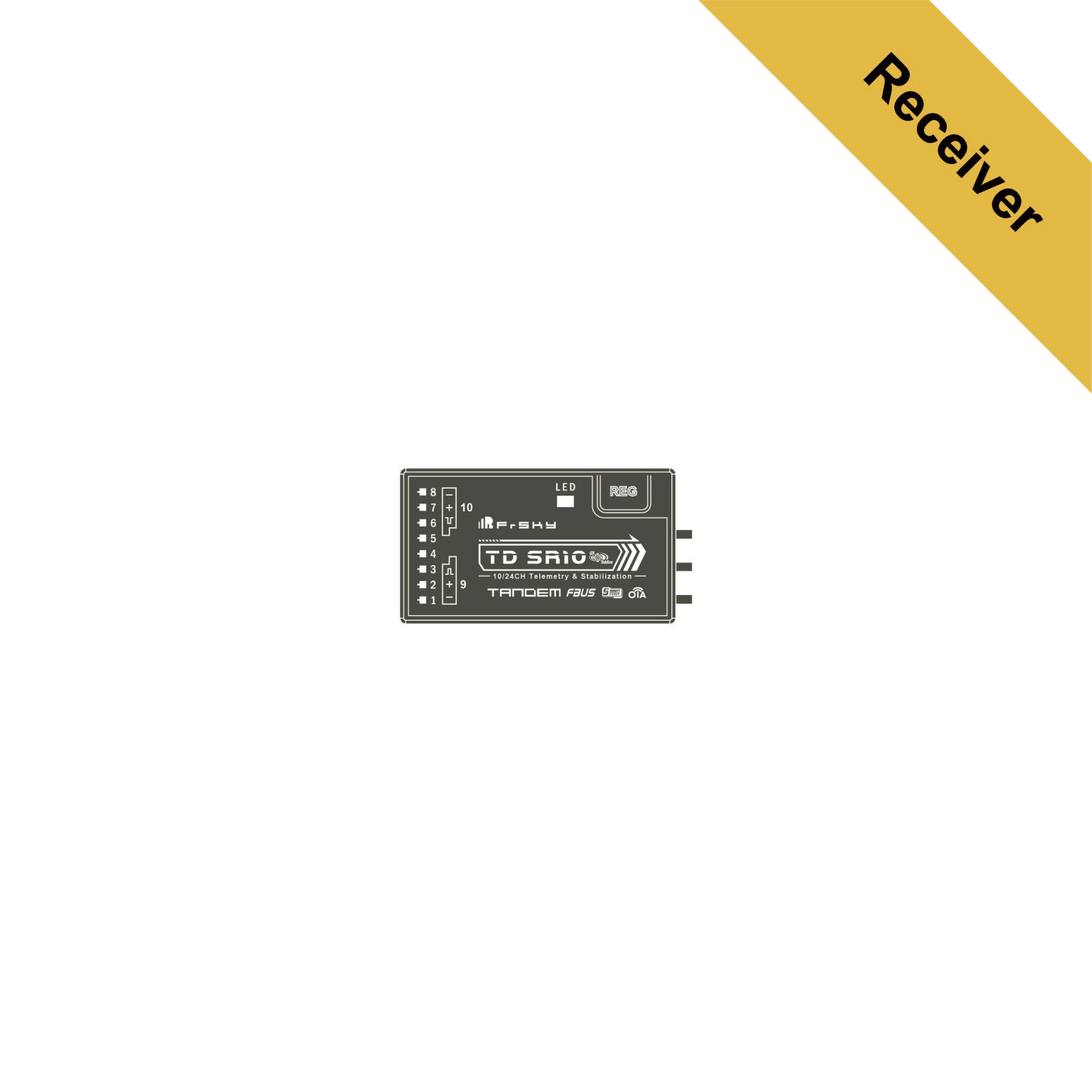

FrSky TD SR10 Dual-Band Receiver with ADV Stabilizer
Experience precise, versatile control with the FrSky TD SR10, a dual-band receiver that operates simultaneously on 2.4GHz and 900MHz frequencies for maximum reliability. Its triple-antenna design ensures wide, multi-directional signal coverage, while the built-in black box module logs your flight data seamlessly. You get 10 configurable channel ports supporting PWM, SBUS, FBUS, and S.Port for a clean, customized build. The integrated ADV Stabilizer takes flight control to the next level, offering advanced modes like auto-level and hover for enhanced maneuverability. With built-in voltage and telemetry sensors, you’ll always have critical data at your fingertips.
The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 2.4Ghz and 900Mhz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance.
The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the remote signal. The data (Power & Signal related) under unusual status during the flight can be recorded by Tandem receivers through a built-in black box module.
The configurable 10 channel ports are a big feature of TD SR10, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the TD receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the build setup.
ADV Stabilizer
The TD SR10 offers an ADV Stabilizer function which is an upgrade over the original classical gyroscope stabilization modes. The ADV Stabilizer offers an advanced mode that provides more programmable stabilized channels and flexibility.
The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with an airplane model.
In the advanced stabilization mode, all the output pins are configurable for stabilization and additional advanced features such as Stab file sharing, programmable parameters, developer access, etc.
The advanced stabilizer feature incorporates high-precision telemetry sensors to monitor altitude, vertical speed, etc. This ADV feature is an additional benefit compared to using a regular S series stabilization receiver.
Simultaneous working dual-band TD mode
Triple antenna design for multi-directional coverage
Built-in Advanced Stabilization Functions
Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.)
Black Box function
Built-in voltage sensor
4ms Race Mode with Telemetry
Long control range (Range varies based on the RF Power settings.)
Over-The-Air (OTA) FW update
Supply current range（every single port）
– Instantaneous current: 5A
– Continuous current: 3A
10 Configurable Channel Ports
– CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
– CP2-10: PWM / SBUS Out / FBUS / S.Port
Frequency: 2.4GHz & 900MHz
Dimensions: 1.83 x 1.04 x 0.58 inches
Weight: 0.59 oz
Operating Voltage: 3.5-12V DC
Operating Current: ≤180mA at 5V
Compatibility: Tandem series transmitters
Channel Ports: 10 Configurable (PWM, SBUS, FBUS, S.Port)
Antenna Configuration: 2x 2.4G (IPEX1), 1x 900M (IPEX1)
Description
Experience precise, versatile control with the FrSky TD SR10, a dual-band receiver that operates simultaneously on 2.4GHz and 900MHz frequencies for maximum reliability. Its triple-antenna design ensures wide, multi-directional signal coverage, while the built-in black box module logs your flight data seamlessly. You get 10 configurable channel ports supporting PWM, SBUS, FBUS, and S.Port for a clean, customized build. The integrated ADV Stabilizer takes flight control to the next level, offering advanced modes like auto-level and hover for enhanced maneuverability. With built-in voltage and telemetry sensors, you’ll always have critical data at your fingertips.
The Tandem dual-band receivers are unlike any other FrSky 2.4Ghz or 900Mhz receivers, they work simultaneously at both 2.4Ghz and 900Mhz frequencies. That means Tandem receivers provide not only the low latency signal and long-range control but also benefit from the enhanced level of high reliability and anti-interference performance.
The Tandem series receivers adopt the triple antenna design that provides multi-directional wide coverage for the remote signal. The data (Power & Signal related) under unusual status during the flight can be recorded by Tandem receivers through a built-in black box module.
The configurable 10 channel ports are a big feature of TD SR10, each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the TD receivers can open up the possibility of seamlessly pairing with multiple telemetry devices (Neuron ESC, Advance Sensors, etc.) as well as simplifying the build setup.
ADV Stabilizer
The TD SR10 offers an ADV Stabilizer function which is an upgrade over the original classical gyroscope stabilization modes. The ADV Stabilizer offers an advanced mode that provides more programmable stabilized channels and flexibility.
The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with an airplane model.
In the advanced stabilization mode, all the output pins are configurable for stabilization and additional advanced features such as Stab file sharing, programmable parameters, developer access, etc.
The advanced stabilizer feature incorporates high-precision telemetry sensors to monitor altitude, vertical speed, etc. This ADV feature is an additional benefit compared to using a regular S series stabilization receiver.
Simultaneous working dual-band TD mode
Triple antenna design for multi-directional coverage
Built-in Advanced Stabilization Functions
Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.)
Black Box function
Built-in voltage sensor
4ms Race Mode with Telemetry
Long control range (Range varies based on the RF Power settings.)
Over-The-Air (OTA) FW update
Supply current range（every single port）
– Instantaneous current: 5A
– Continuous current: 3A
10 Configurable Channel Ports
– CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
– CP2-10: PWM / SBUS Out / FBUS / S.Port
Frequency: 2.4GHz & 900MHz
Dimensions: 1.83 x 1.04 x 0.58 inches
Weight: 0.59 oz
Operating Voltage: 3.5-12V DC
Operating Current: ≤180mA at 5V
Compatibility: Tandem series transmitters
Channel Ports: 10 Configurable (PWM, SBUS, FBUS, S.Port)
Antenna Configuration: 2x 2.4G (IPEX1), 1x 900M (IPEX1)
