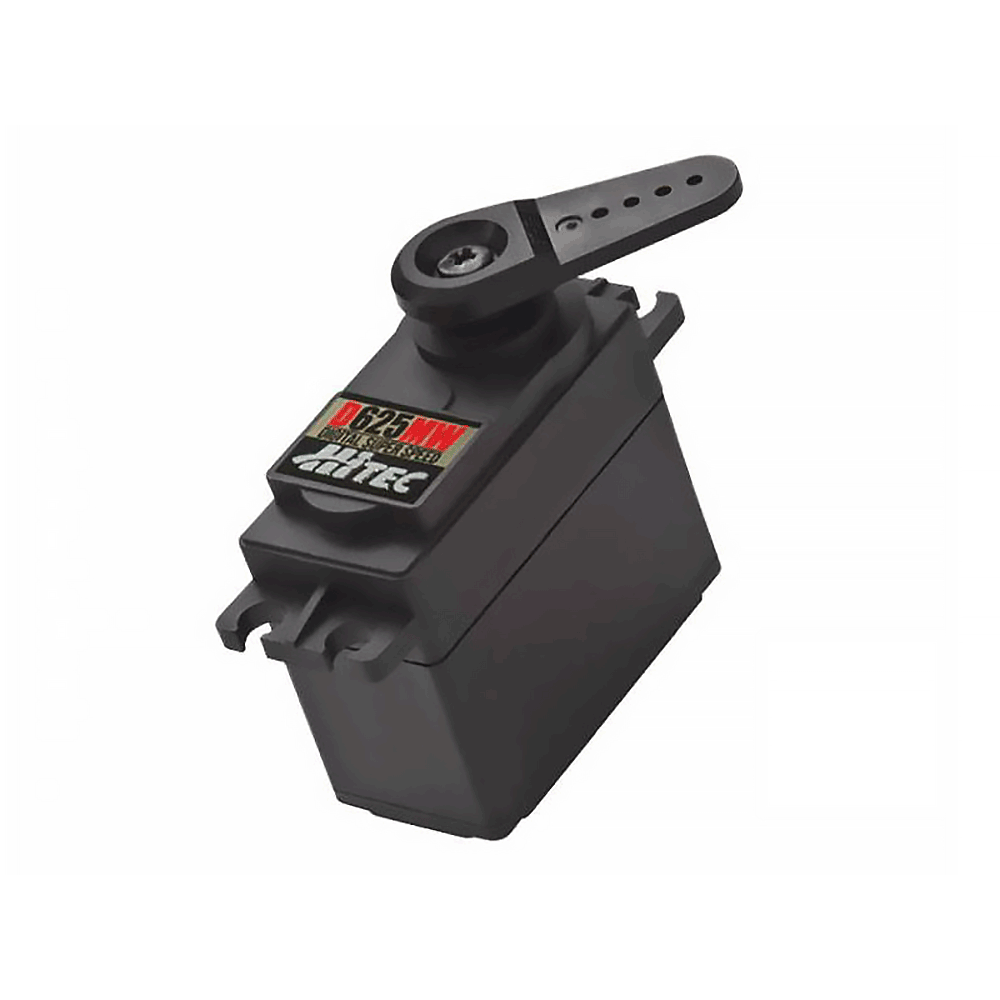

Hitec D625MW High Speed Metal Gear 25T Digital Sport Servo
Upgrade your RC performance with the Hitec D625MW Digital Servo, engineered for power, precision, and reliability. This high-torque servo features advanced digital circuitry and a robust metal gear train for consistent, responsive control in aircraft, vehicles, boats, and robotics. Its powerful cored motor delivers fast transit speeds, while dual ball bearings reduce wear during heavy-duty operation. With wide voltage compatibility from 3.5V to 8.4V, it performs effortlessly across standard and high-voltage systems. The D625MW is fully programmable, allowing you to fine-tune response curves and fail-safe settings for a customized experience.
NOTE: The D625MW is the upgraded version of the HS-5625MG.
Key Features
High Speed Response: With a swift transit time of just 0.13 sec/60° @ 7.4V, the D625MW is engineered for applications that demand quick, accurate control.
Metal Gear Train: Built with 1 MP (Metal + Plastic) & 3 Metal Gears, it provides long-lasting performance and increased crash resistance over plastic gear counterparts.
Cored Metal Brush Motor: Designed with Hitec’s cored motor, the D625MW provides dependable speed, torque, and long service life.
Ball Bearing Support: Even during heavy-duty use, the dual ball bearings on the output shaft ensure smooth operation and reduced wear.
Universal Fit: Its standard size and 25 tooth output spline makes it compatible with the most popular RC platforms.
32-Bit High-Resolution Processor: This resolution ensures smooth, ultra-precise motion and excellent holding power.
Fully Programmable: Via the Hitec DPC-20 and/or HFP-30 digital servo programmers, the performance of the D625MW can be fined tuned for customized response curves, fail-safe settings, and more.
Specifications
Operating Voltage: 3.5V – 8.4V
Speed (4.8V): 0.20 sec/60°
Speed (6.0V): 0.15 sec/60°
Speed (7.4V): 0.13 sec/60°
Torque (4.8V): 6.3 kgf-cm
Torque (6.0V): 8.8 kgf-cm
Torque (7.4V): 10 kgf-cm
Dimensions: 40.8 x 20.0 x 37.8 mm
Weight: 60.0 g
Output Spline: 25T
Ideal Applications
RC Cars and Trucks (1/10 & 1/8 scale)
Airplanes and Jets
RC Boats
Robotics and Automation Projects
Radio Control Applications
Parkflyer N / A
Sport Plane 12 - 15 lbs.
Sailplane 2 meters and up
3D Performance 12 - 15 lbs.
Scale 12 - 15 lbs.
Electric Helicopter 600mm
Gas Helicopter 50-59 Class
On Road 1/10th
Monster Truck 1/10th
Buggies 1/10th
Truggies 1/10th
Short Course / Truck 1/10th
Crawlers N / A
Sail Boat =>1M+ & Scale
Power Boat 1/10th
