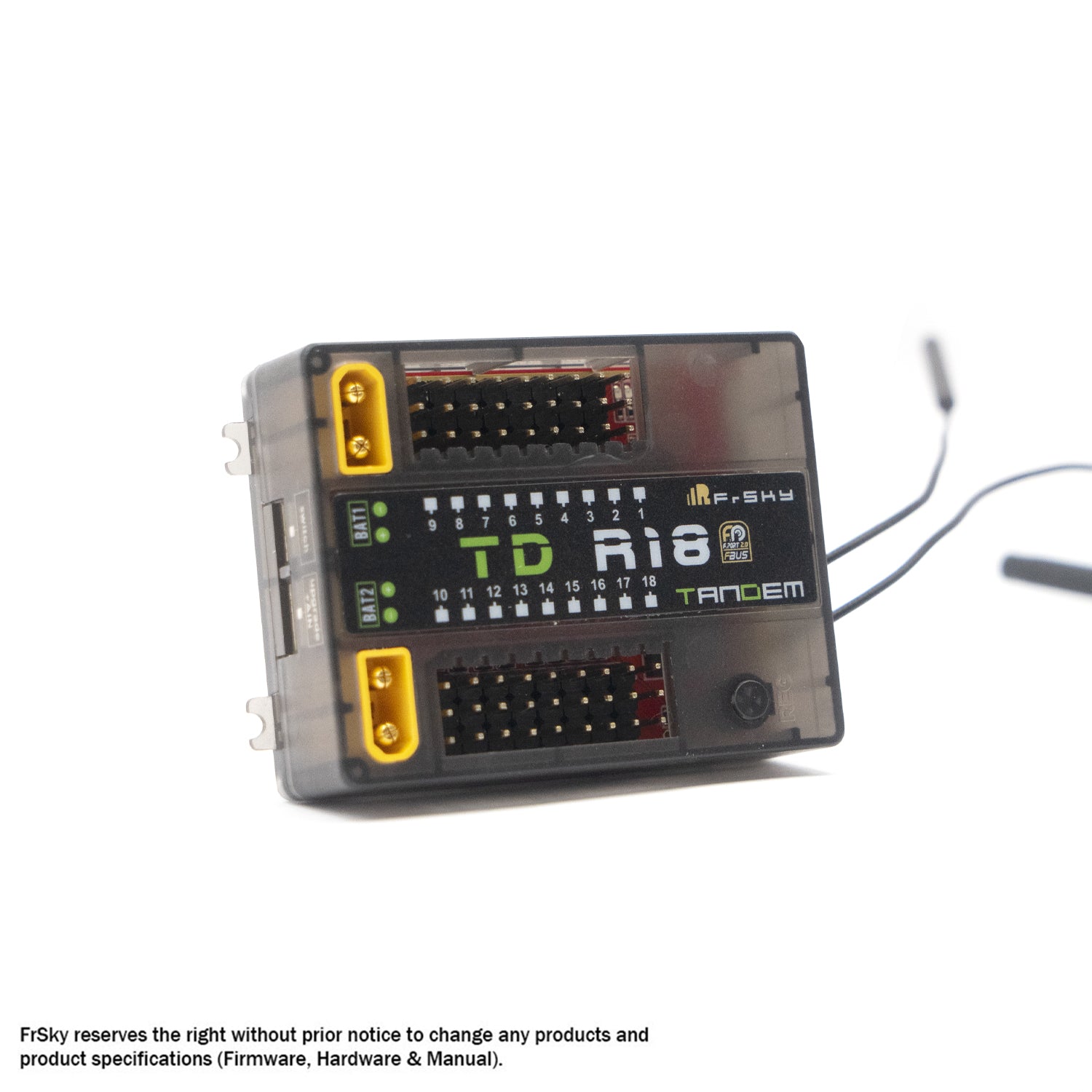

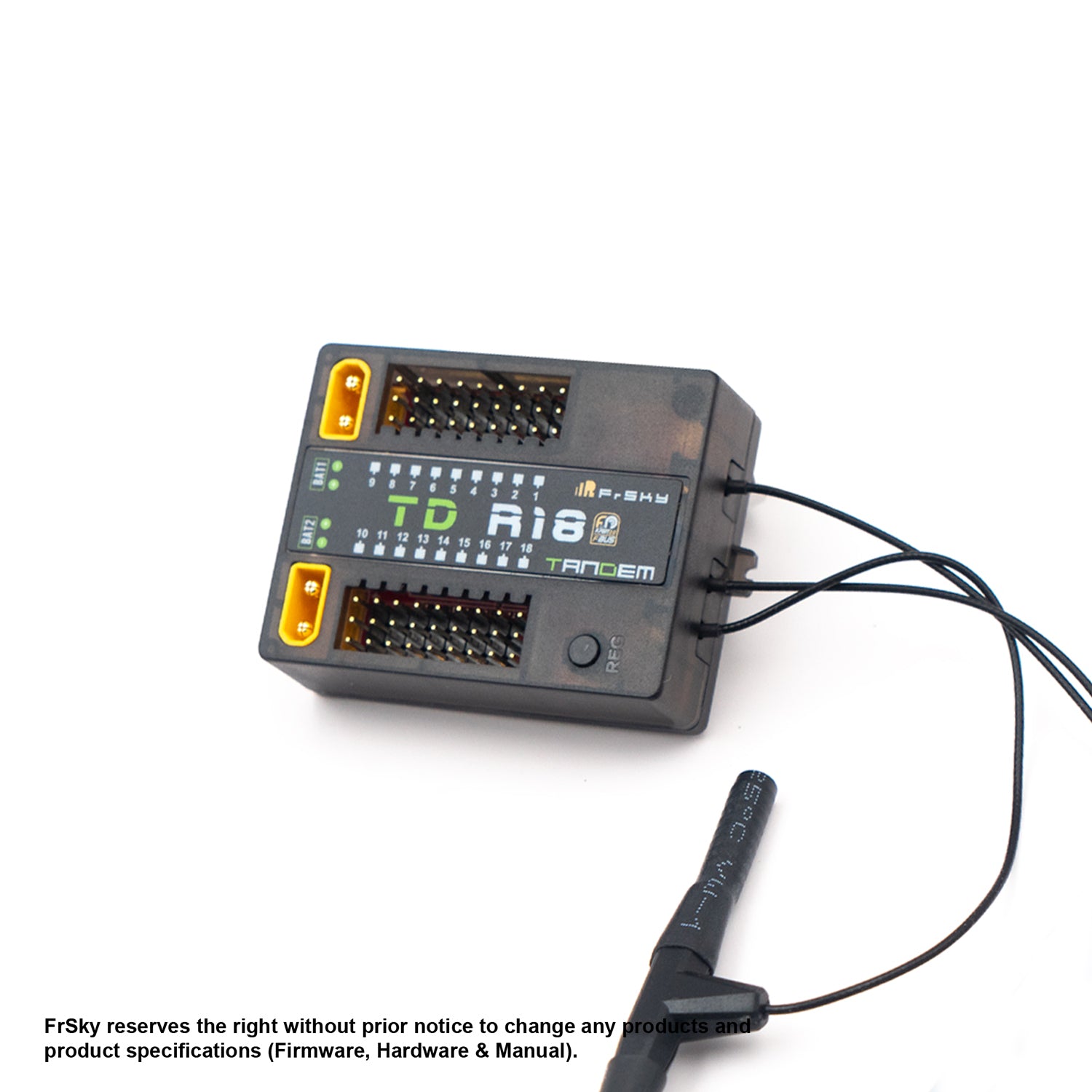

FrSky TD R18 Dual-Band 18 Channel Receiver
The Tandem TD R18 is a professional dual-band receiver designed for superior reliability and low-latency control. By operating simultaneously on 900MHz and 2.4GHz frequencies, it delivers robust anti-interference performance for demanding flight conditions. The triple antenna design ensures wide, multi-directional coverage, while the built-in black box module logs critical flight data. With 18 configurable channel ports supporting PWM, SBUS, FBUS, and S.Port, this receiver seamlessly integrates with your existing telemetry devices. Its integrated power switch and dual XT30 inputs simplify your build setup for a cleaner, more efficient flight system.
Simultaneous working dual-band TD mode
Triple antenna design for multi-directional coverage
Black Box function
Built-in Power Switch
Built-in current and voltage sensors
4ms Race Mode with Telemetry
Long control range
Over-The-Air (OTA) FW update
18 Configurable Channel Ports
– CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In (Redundancy Func.)
– CP2-18: PWM / SBUS Out / FBUS / S.Port
Frequency: 2.4GHz & 900MHz
Dimensions: 2.09 x 1.57 x 0.63 in
Weight: 0.06 lbs
Operating Voltage: 4-12V
Operating Current: ≤185mA @ 5V
Continuous Current: ≤30A
Instantaneous Current: ≤60A
Compatibility: Tandem series radio & TD protocol capable RF module
Antenna Connector: IPEX1
Description
The Tandem TD R18 is a professional dual-band receiver designed for superior reliability and low-latency control. By operating simultaneously on 900MHz and 2.4GHz frequencies, it delivers robust anti-interference performance for demanding flight conditions. The triple antenna design ensures wide, multi-directional coverage, while the built-in black box module logs critical flight data. With 18 configurable channel ports supporting PWM, SBUS, FBUS, and S.Port, this receiver seamlessly integrates with your existing telemetry devices. Its integrated power switch and dual XT30 inputs simplify your build setup for a cleaner, more efficient flight system.
Simultaneous working dual-band TD mode
Triple antenna design for multi-directional coverage
Black Box function
Built-in Power Switch
Built-in current and voltage sensors
4ms Race Mode with Telemetry
Long control range
Over-The-Air (OTA) FW update
18 Configurable Channel Ports
– CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In (Redundancy Func.)
– CP2-18: PWM / SBUS Out / FBUS / S.Port
Frequency: 2.4GHz & 900MHz
Dimensions: 2.09 x 1.57 x 0.63 in
Weight: 0.06 lbs
Operating Voltage: 4-12V
Operating Current: ≤185mA @ 5V
Continuous Current: ≤30A
Instantaneous Current: ≤60A
Compatibility: Tandem series radio & TD protocol capable RF module
Antenna Connector: IPEX1
